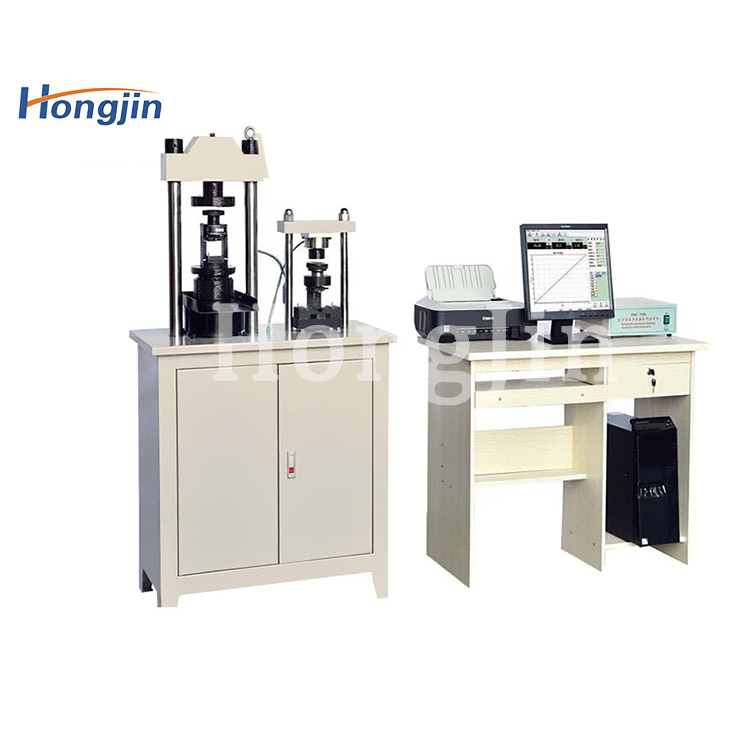

Product introduction:
Our company developed full digital control system (PCI card), direct control of servo speed control system and servo motor rotation, AC servo motor speed through the deceleration system decelerated to pass to the precision ball screw beam rise, fall, test and other actions, to complete the specimen tensile, compression and other mechanical properties test. The testing machine meets: GB/T16491-2008 "Electronic universal Testing Machine" and JJG-1986 "Electronic universal Testing Machine Verification Regulations"; Scope of use: The test requirements of the carton in the standard SN/T0262-93 "Inspection Rules for Corrugated Boxes in the Transportation of Export Commodities" GB/ T4852.4-92 "Pressure Test Method for Packaging and Transportation Packages". Digital display packing box pressure testing machine is mainly used for all kinds of paper boxes, cartons, packing boxes for conventional mechanical performance index test. The professionally designed automatic control and data acquisition system realizes the full digital adjustment of the data acquisition and control process. The equipment is suitable for petrochemical, fiber, rubber, ceramics, food, medical packaging, geotextile, film, wood, paper and other manufacturing industries and product quality supervision departments at all levels, but also suitable for colleges and universities for teaching demonstration work.
| Maximum test force (kN) | 10, 20, 50, 100 |
| Test force measurement accuracy | Plus or minus 1% |
| Test force measuring range maximum load | 2% ~ 100% |
| Deformation measurement accuracy (mm) | 0.01 |
| Test speed (mm/min) | 0.05~200 continuous stepless adjustable |
| Test velocity accuracy | Plus or minus 1% |
| Effective test space (mm) | 1200×1200×1200 (or can be made according to user requirements) |
Features:
1. Strength test: can measure the maximum pressure resistance and displacement of the box;
2. Fixed value test: the overall performance of the box can be detected according to the set pressure or displacement;
3. Stacking test: According to national standards or international standards, stacking tests of different time, different conditions and different force values can be carried out.
4. Automatic calibration: The system can automatically realize the calibration of the accuracy of the indication value;
5. Automatic shift: automatically switch to the appropriate range according to the size of the test force to ensure the accuracy of the measurement data;
6. Automatic display: in the whole test process, real-time display of test force, displacement and deformation;
7. Automatic control: After the input of test parameters, the test process can be automatically completed;
8. Test judgment: After meeting the test requirements, the moving beam automatically stops moving;
9. Limit protection: with mechanical and program-controlled two-level limit protection function;
10. Test report: simple data report can be printed;
11. Manual calculation: Some data need to be manually recorded test results and process data;
