Product Introduction:

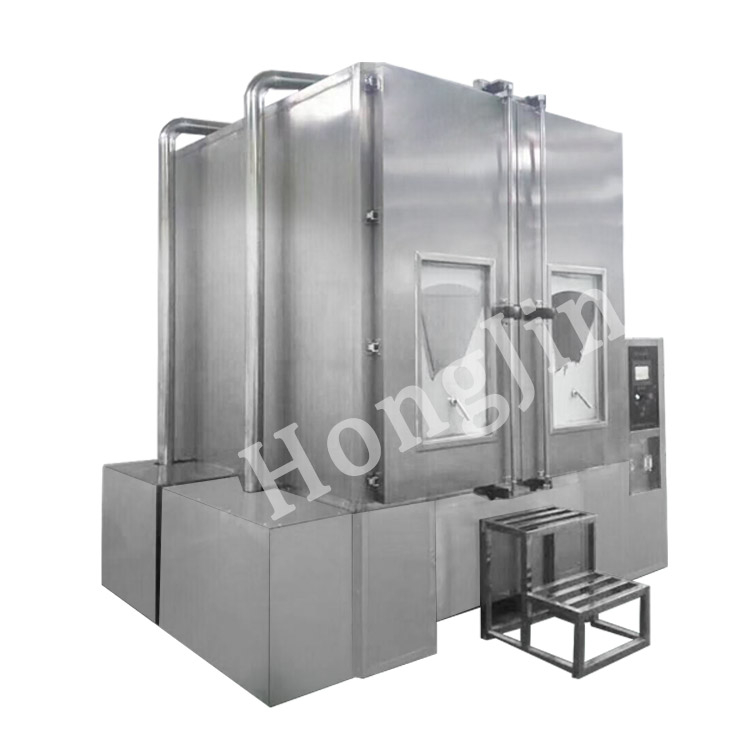

SC series dustproof test box is designed and manufactured in accordance with GB4208-93(equivalent to IEC60529-2001) "Shell protection grade (IP code)", suitable for electrical products to carry out the first feature number of 5 and 6(IPX5 and IPX6) dust test.
The test chamber can provide non-laminar dust carrying vertical circulation air flow, which can be controlled regularly. At the same time, it is equipped with a vacuum pump for pumping air inside the housing of the tested product, and the pumping volume and pressure difference can be adjusted; In addition, the air flow temperature control device is configured in the box to ensure that the test is carried out under the environmental conditions required by the standard.
| Studio size: | D*3000*W2000*H1500mm |
| Standard basis: | GB4208-93, IEC60529-2001 |
| Environmental condition: | Air temperature: 0~35℃ |
| Relative humidity :25%~75%RH | |
| Atmospheric pressure :86~106kpa | |
| Power supply: | Rated voltage: AC380V Rated frequency :50HZ Input power :2KW |
| Studio Temperature: | Room temperature ~ 70℃, can be set control |
| Talc powder dosage: | 2kg/m³ |
| Suction vacuum pump (optional): | Exhaust flow rate (0~6) L/min |
| Pressure difference (negative pressure) :0~2kpa | |
| Materials: | The inner and outer gallbladder are made of sUs high-grade stainless steel door: tempered glass |
| Specimen power socket: | Dustproof socket |
| Controller: | Using a programmable controller (this controller has the following various arbitrary setting control functions) |
| a. Blowing time (stop, blowing) h/n/s adjustable | |
| b. Preset test time :0s~530h59m59s adjustable | |
| Metal screen size: | The nominal wire diameter is 50um, and the nominal spacing between wires is 75um |
| Hair dryer: | All plastic centrifugal fan |
| Vacuum system | Equipped with pressure gauge, air filter, pressure regulating triplet, connecting pipe (vacuum pump separately, instructions when ordering) |
| Note: | This test box can meet the requirements of GB2423, GB4706, GB4208, DIN household appliances, low-voltage electrical appliances, automobile, motorcycle parts shell protection class test. |
| The device can not meet the sand and dust test with wind source in GJB150. | |
