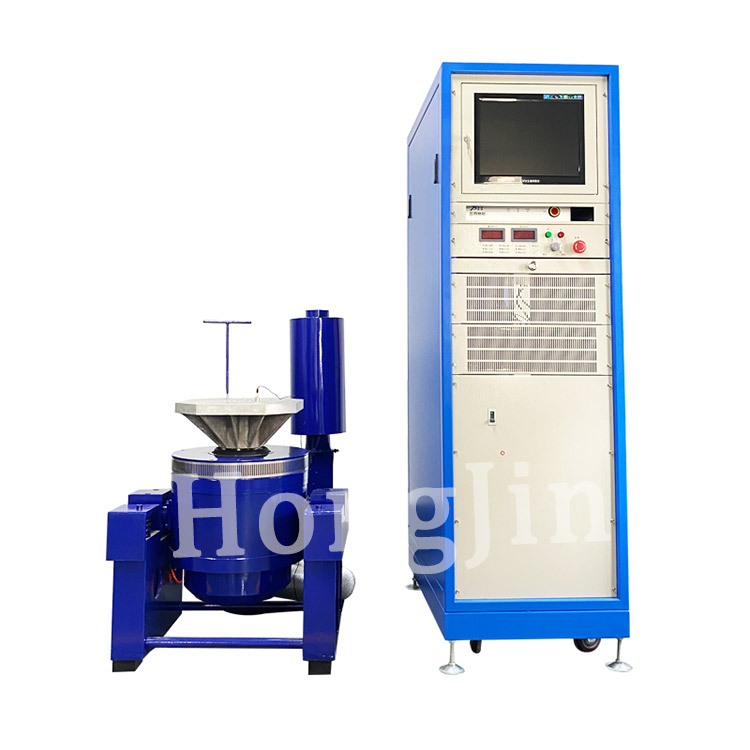

The electric vibration series products produced by our company adopt modern advanced technology and special process such as "double magnetic circuit structure" self-generated skeleton moving coil "" air suspension support" linear bearing and roller guide "" trunnion vibration isolation", which can respectively complete the triaxial sinusoidal vibration test and broadband random vibration test, and can complete the classic (half sine, trapezoidal, after peak saw) pulse and impact response spectrum test. It can be configured with weather box to complete the comprehensive test of mechanics and weather environment.
| Model number | Rated sinusoidal thrust | Rated random thrust | Frequency range | Rated acceleration | Rated speed | Rated displacement | Maximum load | Equivalent weight of moving parts | Table size |
| HJS-1 | 1000 | 800 | 5-4500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| HJS-1.5 | 1500 | 1200 | 5-4500 | 600 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| HJS-2 | 2000 | 1600 | 5-4000 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| HJS-2a | 2000 | 1600 | 2-3000 | 250 | 1.4 | 40 | 140 | 8 | Φ230 |
| HJS-3 | 3000 | 2400 | 5-4000 | 1000 | 16 | 25 | 120 | 3 | Φ150 |
| HJS-3a | 3000 | 2100 | 2-3000 | 350 | 1.4 | 40 | 140 | 8.5 | Φ230 |
| HJS-6 | 6000 | 4800 | 5-3000 | 1000 | 1.6 | 25 | 200 | 6 | Φ200 |
| HJS-6a | 6000 | 4200 | 2-3000 | 500 | 1.4 | 51 | 300 | 12 | Φ230 |
| HJS-10 | 10000 | 8000 | 5-3000 | 1000 | 1.8 | 51 | 150 | 10 | Φ200 |
| HJS-20 | 20000 | 18000 | 5-3000 | 1000 | 2 | 51 | 300 | 20 | Φ320 |
| HJS-30 | 30000 | 30000 | 5-3000 | 1000 | 1.8 | 51 | 500 | 30 | Φ370 |
| HJS-40 | 40000 | 40000 | 5-3000 | 900 | 1.8 | 51 | 800 | 44 | Φ440 |
| HJS-50 | 50000 | 50000 | 5-2800 | 1000 | 1.8 | 51 | 800 | 50 | Φ440 |
| HJS-60 | 60000 | 50000 | 5-2800 | 830 | 1.8 | 51 | 800 | 60 | Φ440 |
| HJS-100 | 100000 | 80000 | 5-2200 | 850 | 1.8 | 51 | 1000 | 110 | Φ580 |
| HJS-160 | 160000 | 130000 | 5-2000 | 850 | 1.6 | 51 | 1200 | 164 | Φ600 |
Product features:
1. The well-designed moving-coil skeleton has a high first-order axial resonance frequency.
2, double magnetic circuit, low magnetic leakage, compact and reasonable structure, rocker arm roller rod and imported linear bearing compound guide mechanism, guiding stiffness, strong off-load capacity.
3, trunnion vibration isolation does not need to use special foundation, easy to install and move.
4. Advanced GIF winding process ensures high reliability of moving ring.
5, new air duct design, enhance the cooling effect. The bearing air bag with large static stiffness and small dynamic stiffness improves the bearing capacity of the shaking table and improves the low frequency performance.
