Details:

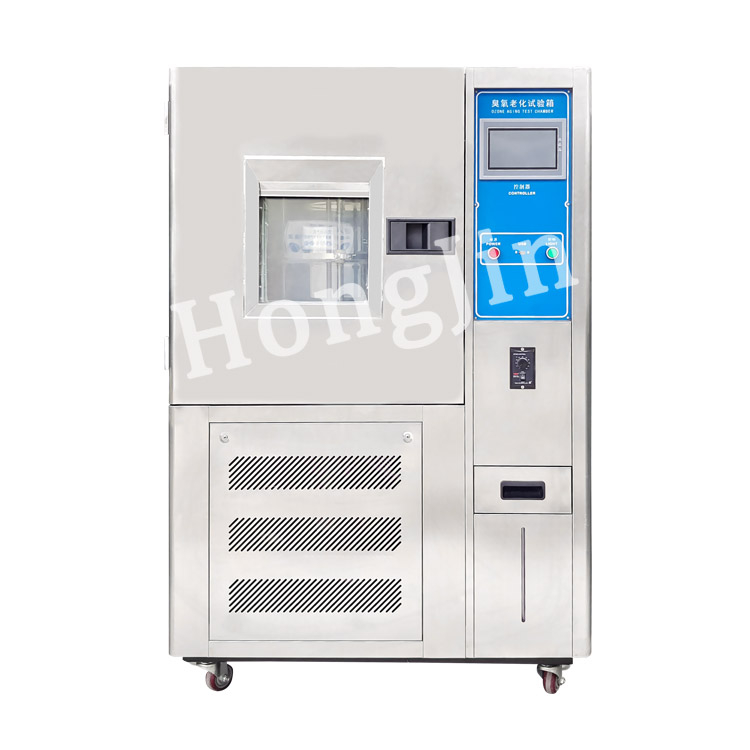

Ozone aging test chamber is used to simulate and strengthen ozone conditions in the atmosphere, study the action law of ozone on rubber, and quickly identify and evaluate the anti-ozone aging property of rubber and the protective effectiveness of anti-ozone agent. It is suitable for aging test of non-metallic materials, organic materials (paint, rubber, plastic, paint, pigment, etc.) under ozone condition.
| Model number | HJ-100 | HJ-225 | HJ-500 | HJ-800 | HJ-1000 |
| Studio size DxWxH | 450x450x450 | 500x600x750 | 700x800x900 | 1000x800x1000 | 1000x1000x1000 |
| Overall dimensions DxWxH | 1060x880x1670 | 1110x1030x1870 | 1130x1410x2020 | 1610x1430x2120 | 1610x1430x2120 |
| Gross power | 3KW | 4.2 KW | 4.7 KW | 5.7 KW | 6KW |
| Temperature range | 5℃--70℃(Test conditions:40℃) | ||||
| Ozone concentration | 50~500pphm (or customized according to customer needs) | ||||
| Temperature fluctuation | ± 0.5 ° ℃ | ||||
| Frame speed | 360 degree rotation of the sample holder (speed 1 RPM) | ||||
| Ozone control accuracy | ± 10% | ||||
| Moderate range | 50%~95%R.H | ||||
Features:
1. The content of ozone in the atmosphere is very small, but the main factor of rubber cracking, this product simulates and strengthens the ozone conditions in the atmosphere, studies the action law of ozone on rubber, and quickly identifies and evaluates the method of anti-ozone aging performance of rubber and anti-ozone agent protection effectiveness. Reference standards: GB/T7762-2003 vulcanized rubber or thermoplastic rubber ozone cracking static tensile test, GB/T2951.21-2008 general test method for cable insulation and sheathing materials, GB/T 11206-2009 rubber aging test surface cracking method, and other relevant standards specified test methods.
2. Principle and method - The test method can be divided into "static" and "dynamic" according to the test method and standard. Static means that the sample is put into the test box after being stretched, and the dynamic means that the sample is placed on the fixture of the test box, and the test is done while stretching, and the tensile float is about 5%-45% of the sample itself.
Hot tags:rubber ozone aging test chamber, vulcanized rubber ozone resistance aging test chamber, sealant ozone aging test chamber, dynamic static rubber aging test machine, rubber plastic static tensile ozone aging chamber, rubber plastic dynamic tensile ozone aging chamber, simulated climate environment ozone aging chamber, vulcanized rubber aging chamber, rubber heat resistant aging chamber, high temperature ozone resistance aging test chamber, China, wholesale, low price, suppliers, for sale, factory, price, quotation
