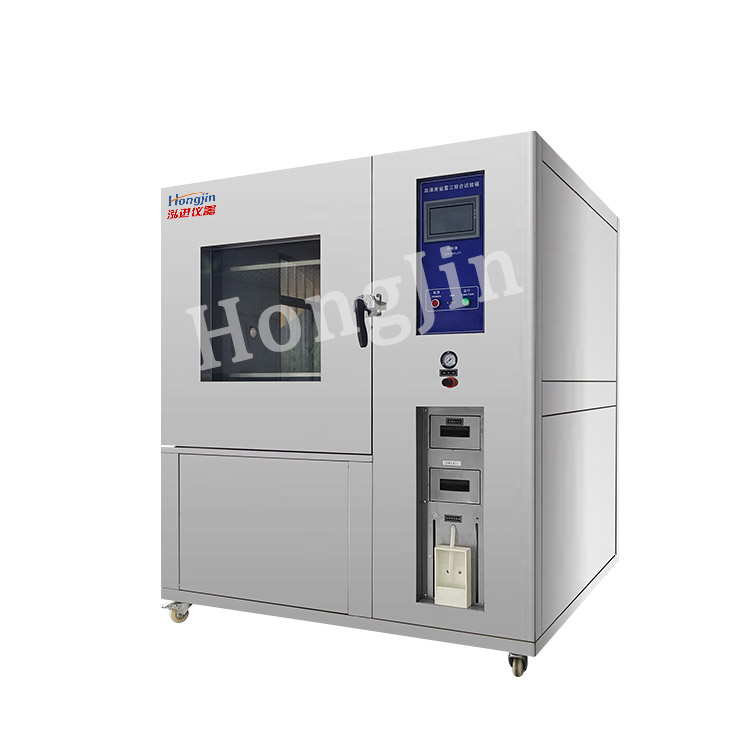

High And Low Temperature Salt Spray Test Chamber

Combined temperature, humidity, salt spray test is to accelerate the corrosion test in the closest to the actual natural conditions, to the natural environment more often encountered conditions to simulate, several times the harsh conditions of the natural environment to be combined, such as salt spray, dry, humidity, normal temperature, low temperature and other environments combined, you can write programs or test alone.
Availability:
Quantity:

Combined temperature, humidity, salt spray test is to accelerate the corrosion test in the closest to the actual natural conditions, to the natural environment more often encountered conditions to simulate, several times the harsh conditions of the natural environment to be combined, such as salt spray, dry, humidity, normal temperature, low temperature and other environments combined, you can write programs or test alone. The main test products are for products used under intense environmental changes, such as automobile parts, aviation equipment, photographic equipment, building materials, electrocoating coatings and electronic and electrical systems, such as metal electrochemical corrosion resistance are applicable.


Model number HJS-90 HJS-120
Test standard ACSS, SOAK, DRYAIR. HUMI, ROOMAIR ACSS, DRYAIR, HUMI
Test temperature 5°C~+80°C 5° C~ +80° C
Internal dimension 900x600x500 (WxDxH) M/M 1200x1000x500 (WxDxH ) M/M
External dimension 1500x1000x1700 (WxDxH ) M/M 1950x1200x1600 (WxDxH ) M/M
volume 270L 600L
weight 180KG 250KG
Humidity range 60% ~ 95%RH (temperature at RT+10t ~ 70b) 60% ~ 95%RH ( 50P ~ 70b )
Salt spray temperature 5°C~ 50° C ( CASS) 35°C ( CASS50P)
Brine temperature RT+10° C~ 60°C
Dry air temperature RT+10°C ~70°C 50°C
Power source AC380V 12A AC380V 10A


Product features:

1, using LCD digital display temperature and humidity controller. (The temperature and humidity recorder is configured to record the temperature and humidity test curve completely; This is an optional item)


2, can set 50 paragraph execution mode, each paragraph can cross group execution program.


3, each execution mode time can be arbitrarily set 0-999 hours 59 minutes.


4, each group can be arbitrarily set partial cycle 1-999 times or all play cycle 0-999 times.


5, with power failure memory function, can continue to perform unfinished tests after power recovery.
