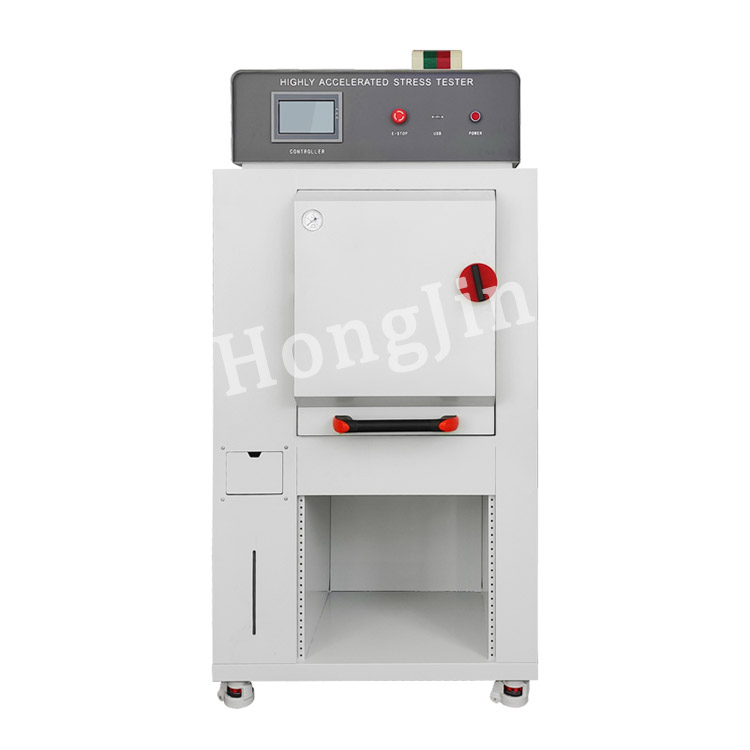

Hast High-pressure Accelerated Aging Test Chamber

HAST Highly Accelerated Aging Tester (also known as HAST High Pressure Accelerated Aging Tester) The purpose of the test is to increase environmental stress (such as temperature) and working stress (voltage, load, etc.
Availability:
Quantity:

Scope of application:

HAST Highly Accelerated Aging Tester (also known as HAST High Pressure Accelerated Aging Tester) The purpose of the test is to increase environmental stress (such as temperature) and working stress (voltage, load, etc. applied to the product), speed up the test process, and shorten the product or system The life test time is used to investigate and analyze when the problems of wear and service life of electronic components and mechanical parts occur, what is the shape of the failure distribution function of the service life, and the test to analyze the reasons for the increase in failure rate .


model HAST-30 HAST-35 HAST-40
Internal size (WxHxD)mm Φ300x500 Φ340x500 Φ400x500
Operating temperature 121℃; 132℃; (143℃ special selection)
Use vapor pressure (absolute pressure) 1 ambient atmospheric pressure +0.0Kg/cm2-2.0Kg/cm2; (3.0Kg/cm2 «in special specifications)
Circulation method Natural convection circulation of water vapor
Outer box size (WxHxD)mm 900x900x700
Operating humidity 75%~100%RH saturated vapor humidity
Accessories Water shortage protection, overpressure protection, (with automatic/manual water replenishment function, automatic pressure relief function)
Power supply AC220V, 50/60HZ/


hast high-pressure accelerated aging test chamberhast accelerated aging life test kit


Features

1. Intelligent exhaust design (exhaust air in the boiler) improves pressure stability and reproducibility

2. Long-term operation of the experiment machine for 400 hours, ultra-long-term experiment operation time

3. The pressure resistance of the tank (140℃) is 2.65kg, which is in line with the pressure resistance design of the 6kg tank in the water pressure test.

4. Two-stage pressure safety protection device adopts two-stage combined controller and mechanical pressure protection device

5. Two-stage automatic pressure-relief button for safety protection and emergency safety device


Meet the test standard:

Can meet IEC60068-2-66, JESDEC-A110, A118, IEC60068-2-66, JESDEC A110, A118
