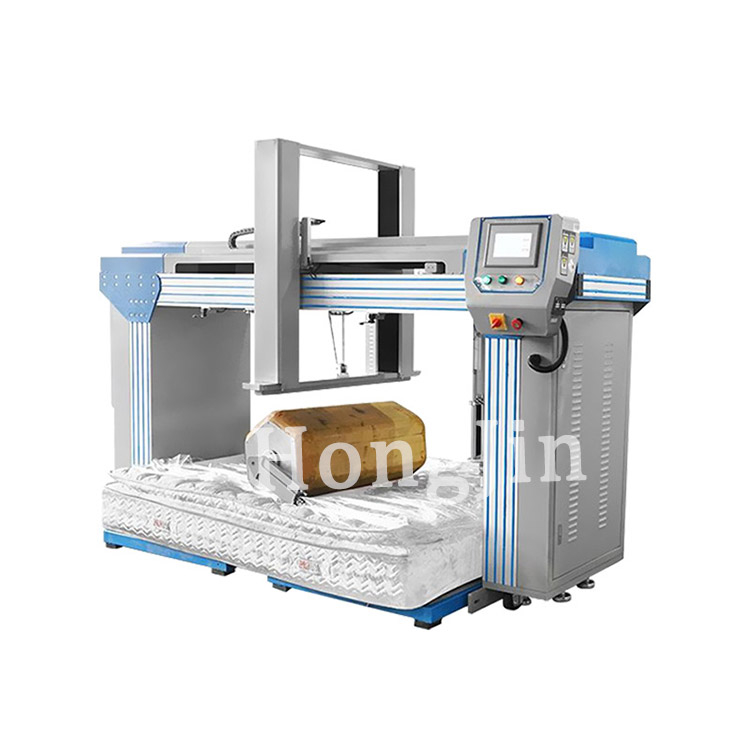

Furniture Mattress Firmness Testing Machine

The mattress rolling test machine (three-in-one) uses a horizontally rolling wooden hexagonal barrel or cylinder (250 mm in diameter at both ends and 300 mm in the middle part) to roll back and forth on the tested mattress to simulate human movements to assess the performance of mattresses.
Availability:
Quantity:

The mattress rolling test machine (three-in-one) uses a horizontally rolling wooden hexagonal barrel or cylinder (250 mm in diameter at both ends and 300 mm in the middle part) to roll back and forth on the tested mattress to simulate human movements to assess the performance of mattresses.


Applicable mattress size 2.2M * 2M
Controller Mitsubishi PLC + color touch screen + data output function
Hexagon Roller Length 36±3in(915±75mm)
Hexagon Roller Weight 240±10Lb(109±4.5kg)
Side-to-side distance of hexagonal rollers 17±1in(430±25mm)
Round drum length 1000mm
Round drum weight 1400N
Diameter of round drum 300mm
Test trip ASTM 1566: Max. Mattress Width, Min. 70% of Mattress Width or 38in (965mm), whichever is smaller
Test speed 0-20r/min
Transmission Server system
Altitude loss test Servo measuring system (height loss measurer)
Mattress edge a. Test times: 5000 times; b. Holding time: 3 seconds; C. Test force value: 1000N
Power supply 3∮,AC380V,5kW
