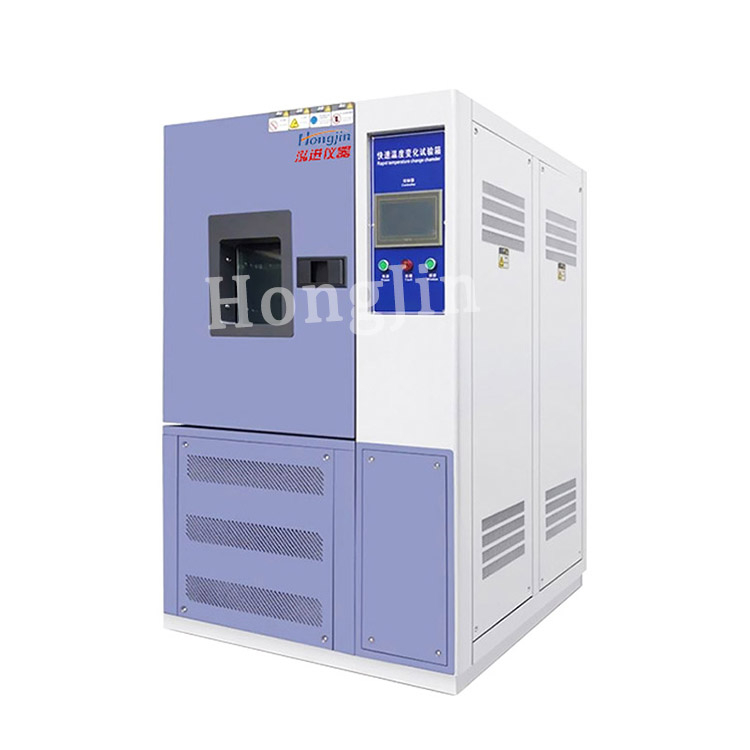

Fast Temperature Cycling Chambers

Rapid temperature change test chamber is mainly used in electronics, aviation, automobile, household appliances, military, LED, circuit board, scientific research and other fields, for high temperature drought resistance, low temperature cold resistance test, adaptability and stress screening test under the condition of rapid temperature change or gradual change.
Availability:
Quantity:

Scope of application:

Rapid temperature change test chamber is mainly used in electronics, aviation, automobile, household appliances, military, LED, circuit board, scientific research and other fields, for high temperature drought resistance, low temperature cold resistance test, adaptability and stress screening test under the condition of rapid temperature change or gradual change.


Model number HJ-225 HJ-408 HJ-800 HJ-1000
Inner box size (W*H*D)cm 50*75*60 60*85*80 100*100*80 100*100*100
Temperature range 70 ° ℃ ~ 150 ℃
Humidity range 20~98%RH (10%~98%R.H; 5%-98% R.H are optional items)
Rapid temperature range A:- 45°C - 85°C / B: -20°C - 85°C
Fast temperature change rate 5℃/min 10℃/min 15℃/min 20℃/min 25℃/min (can be designed according to requirements)
Temperature fluctuation ±0.5℃
Humidity fluctuation ±2.5%RH
Temperature uniformity ±2℃
Humidity uniformity ±3.0%RH (humidity 75%RH)
material SUS#304 not show steel
Refrigeration system Original European and American imported fully sealed low noise high and low temperature all-purpose compressor, environmental refrigerant (R404A/R23)
Control system LCD touch screen controller, Chinese and English cut
Power supply The replacement power cord is located at the back of the machine /AC380±5%V /50±0.5Hz /3 phase 5 wire/length 2.5m


fast temperature cycling chambers

fast temperature cycling chambers


Product features:


1. Colorful Chinese and English LCD touch screen, easy to operate.


2. With R232,485,USB interface, Ethernet communication function, so that the test process of the whole record monitoring and export printing. (one of three)


3. Adopt the popular energy-saving control mode, automatically adjust the compressor refrigeration power, compared with the traditional heating balance control energy consumption is reduced by 30%.


4. The main accessories of the whole machine are used, so that the overall quality of the equipment has been improved or guaranteed.


5. Size/parameters/functions can be customized according to user requirements.


谷歌通用图_01谷歌通用图_02谷歌通用图_03谷歌通用图_04
