Details:

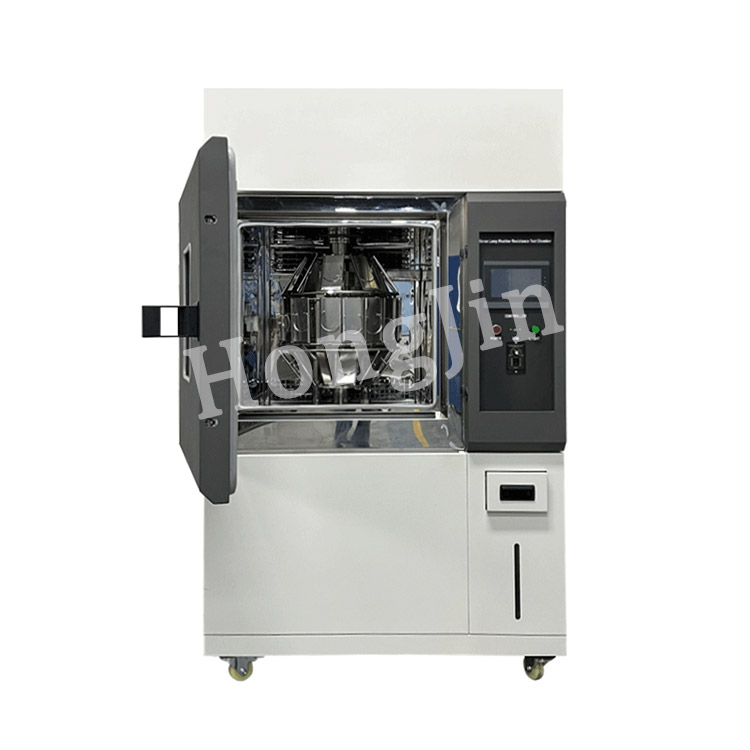

Xenon lamp test chamber adopts xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves in different environments, which can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control. Xenon lamp test chambers can be used for the selection of new materials, the improvement of existing materials or the change test to evaluate the durability of material composition changes, and can well simulate the changes caused by material exposure to sunlight under different environmental conditions.
| Model number | 150 (Air-cooled) | 225 (Air-cooled type) | 408(Air-cooled type) |
| Studio size (DxWxH)mm | 500x600x500 | 500x600x750 | 800x850x650 |
| Overall dimensions (DxWxH)mm | 1030x1090x1640 | 1440x1280x2060 | 1440x1380x2060 |
| Gross power | 11.5 KW | 12.5 KW | 14.5 KW |
| Net weight | 340KG | 460KG | 660KG |
| Blackboard temperature range | 63 ℃ ~ 100 ℃ | ||
| Temperature range | 65~98%R.H | ||
| Rainfall cycle | 1-240 minutes, interval (break) adjustable | ||
| Measured wavelength | 400nm-1000nm | ||
| Xenon lamp power | Imported 1.8KW (life 2000 hours) | ||
| Duration of rainfall | 1-9999 minutes, adjustable | ||
| Water spray pressure | 0.12 ~ 0.15 mpa | ||
| irradiance | 150W/m2 736W/m2 | ||
Features:
◆ Full spectrum xenon lamp.
◆ A variety of filter systems to choose from.
◆ Water spray function.
◆ Relative humidity control.
◆ Test chamber air temperature control system.
◆ irregularly shaped flat product rack, easy to place products
◆ Xenon arc lamp imported from the United States.
◆ Easy to install, easy to use, and basically do not require daily maintenance.
◆ The service life of the xenon arc lamp depends on the level of irradiance used, and the life of the general lamp is 1600 hours. The lamp is quickly and easily replaced, and the long-acting filter ensures that the required spectrum is maintained.
◆ The latest air-cooled technology xenon lamp, to solve the problem of high failure rate of water-cooled xenon lamp cooling mode, the user can replace the lamp easily; Easy to maintain.
Hot tags:air cooled xenon lamp aging test chamber, xenon lamp climate aging resistance test chamber, solar stability test box, textile testing machine, xenon arc lamp weathering aging chamber, simulated sunlight weather resistance testing machine, air cooled aging test chamber, light and climate resistance test chamber, xenon lamp acceleration aging test chamber, high temperature light xenon lamp aging chamber, China, wholesale, low price, suppliers, for sale, factory, price, quotation
